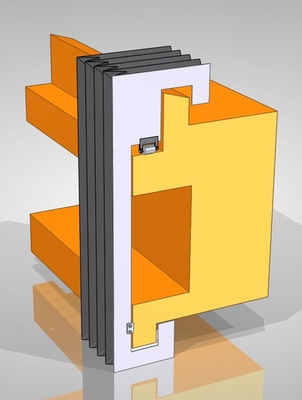

C-Bellow
Description
Vertical installation normally uses C-bellow to protect precision ball screw, motor, and linear motion parts on machining centers or lathe machines, as well as in the application of curve cutting.

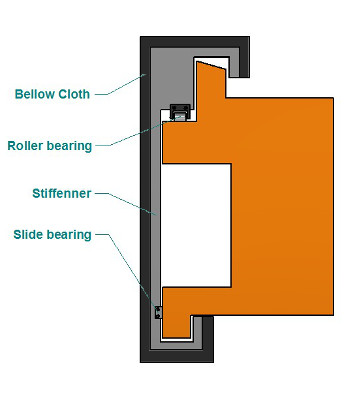

Bearings (roller, slide) provide a smooth gantry, completed with a stabilized structure obtained from accurate design. This leads to the "Navatale" bellow's equilibrium movement.
To Request Pricing
Please specify the sizes based on the diagram on the left:
- A
- B
- C
- W1
- W2
- H
- Lc (Contraction Distance)
- Lx (Extension Distance)
